Amps: 30 Amps to 20 Amps
Voltage: 125/250V to 125V
Conductor Material: Copper
Plug: NEMA L14-30P
Connector: NEMA L5-20R
Wire Gauge: 10/3
Cord Type: SOOW

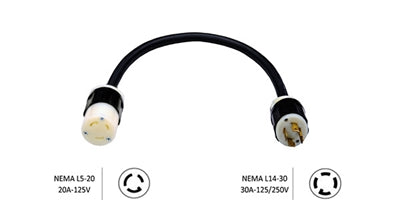

30 Amp 125/250 Volt to 20 Amp 125 Volt Adapter, NEMA L14-30P to NEMA L5-20R Features:
*Weather Resistant Components
Applications:
- Wiring for industrial machinery
- Washing machines and large appliances
- Heavy-duty tools and motors
- Temporary electrical power
- Lighting installations for construction site
- Generator power distribution
- Shore power connection
For use:
- In dry locations do not to exceed minimum -40°C or maximum 90°C.
- In wet locations or other applicable locations.
- With flexible applications in severe environments.
- In areas where maximum degree for oil resistance and resilience are required.
- In cold weather applications.
- With Shore power; the cord may be completely immersed in water – NEVER immerse the plug or connector in any liquid(s).
- When exposed to oil or coolant do not surpass temperatures of 60°C.
Cord Specifications:
S - Service Cord
O - Oil Resistant Jacket
O - Oil Resistant Insulation
W - Water and Weather Resistance
- Extra Flexible EPDM Insulation and Jacket.
- Flexible Copper Conductors
- Black Jacket. Rated -40°C to 90°C. RoHS Compliant.
- Rated as Extra Hard-Usage Service Cord.
Plug Specifications:
Leviton 2711, 30A, 125/250V, 3P, 4W, Locking Plug, NEMA L14-30P 07847780835
At Rated Voltage: 2 HP L-L / 2 HP L-N
Grounding: Yes
Amperage: 30 Amp
Voltage: 125/250 Volt
NEMA: L14-30P
Pole: 3
Wire: 4
Body Material: Impact Modified Nylon
Back Cover: Thermoplastic
Assembly Screws: Steel, Zinc Plated
Color: Black-White
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Cord Range: .595 - 1.150
Wire Gauge: 14-8 AWG
NEMA: WD-6
ANSI: C-73
UL498: File E13393
UL Fed Spec WC-596: File E13393
CSA C22.2 No. 42: File LR-406
UPC: 07847780835
Connections Specifications:
Leviton 2313, 20A, 125V, NEMA L5-20R, 2P, 3W, Locking Connector 07847780097
Horsepower Rating: 1 HP
Grounding: Yes
Amperage: 20 Amp
Voltage: 125 Volt
NEMA: L5-20R
Pole: 2
Wire: 3
Body Material: Impact Modified Nylon
Back Cover: Thermoplastic
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Cord Range: .385 - .780
Wire Gauge: 16-10 AWG
Color: Black-White
NEMA: WD-6
ANSI: C-73
UL498: File E13393
UL Fed Spec WC-596: File E13393
CSA C22.2 No. 42: File LR-406
UPC: 07847780097
